Octagonal Poles

Octagonal poles are produced from high grade hot rolled steel coils by an automated procedure of cutting and folding/pressing the trapezoidal sheet into octagonal shape and welding the sides longitudinally by submerged arc welding.

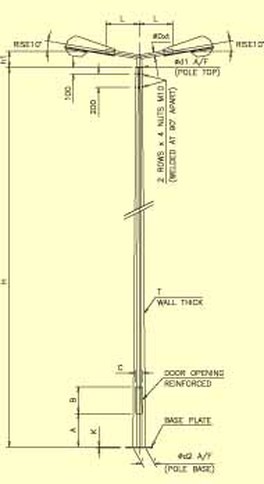

Below is the illustration of some standard octagonal poles for street lighting applications complying with SASO specification.  Specifications can be catered as per the requirement of clients.
​

Pole Size (mm)

  Sl.  Height   Top/Btm/Thk
  1. 6,000      75x130x4mm
  2. 8,000      75x156x4mm
  3. 9,000      75x165x4mm
  4. 10,000    75x180x4mm
  5. 12,000    90x225x4mm
  6. 14,000    90x285x4mm
  7. 6,000      60x130x4mm
  8. 8,000      60x156x4mm
  9. 9,000      60x165x4mm
  10. 10,000    75x180x4mm
  11. 12,000    90x250x4mm
  12. 14,000    90x285x4mm
  13. 15,000   105x300x4mm
  14. 16,000   105x320x4mm​
  15. 18,000   105x375x5mm

Flange Plate (mm)

   Sl. Dim / Thickness
  1. 400x400x10mm
  2. 400x400x10mm
  3. 400x400x15mm
  4. ​400x400x15mm
  5. 400x400x20mm
  6. 450x450x20mm
  7. 400x400x10mm
  8. 400x400x10mm
  9. 400x400x15mm
  10. 400x400x15mm
  11. 400x400x20mm
  12. 450x450x25mm
  13. 450x450x25mm
  14. 550x550x30mm
  15. 600x600x30mm

Base Plate (mm)

    Thk/Lgth/Nos
  1. M18x400 4 Nos.
  2. M24x500 4 Nos.
  3. M24x500 4 Nos.
  4. M24x500 4 Nos.
  5. ​M27x700 4 Nos.
  6. M27x700 4 Nos.
  7. M18x400 4 Nos.
  8. M24x500 4 Nos.
  9. M24x500 4 Nos.
  10. M24x500 4 Nos.
  11. M27x700 4 Nos.
  12. M27x700 4 Nos.
  13. M30x1000 4 Nos.
  14. M30x1000 4 Nos.
  15. M32x1000 4 Nos.
