Round Conical Poles

Round Conical Poles are produced from high grade hot rolled steel coils by an automated procedure of cutting and folding/pressing the trapezoidal sheet into conical shape and welding the sides longitudinally by submerged arc welding.

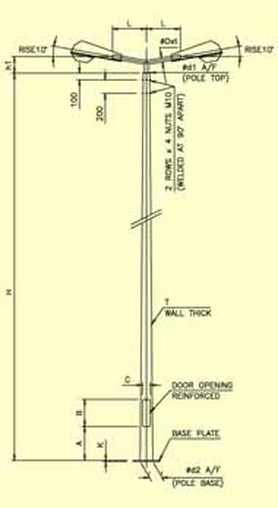

Below is the illustration of some standard octagonal poles for street lighting applications complying with SASO specification.  Specifications can be catered as per the requirement of clients

Pole Size (mm)

  Sl.  Height   Top/Btm/Thk
  1. 6,000     75x140x4mm
  2. 8,000     75x165x4mm
  3. 9,000     75x180x4mm
  4. 10,000    90x195x4mm
  5. 12,000   120x250x4mm
  6. 14,000   120x270x4mm
  7. 12,000     90x250x4mm
  8. 14,000    90x270x4mm
  9. 15,000   105x270x5mm
  10. 16,000   105x285x5mm
  11. 18,000   105x310x5mm
  12. 12,000   90x250x4mm
  13. 14,000   90x270x5mm
  14. 15,000   105x285x5mm​
  15. 16,000    105x285x5mm
  16. 18,000  105x310x5mm

Flange Plate (mm)

   Sl. Dim / Thickness
  1. 400x400x10
  2. 400x400x10
  3. 400x400x15
  4. 400x400x15
  5. 400x400x20
  6. 450x450x20
  7. 400x400x20
  8. 450x450x20
  9. 450x450x25
  10. 450x450x25
  11. 500x500x30
  12. 400x400x20
  13. 450x450x20
  14. 450x450x25
  15. 450x450x25
  16. 500x500x30

Base Plate (mm)

    Thk/Lgth/Nos
  1. M-18x400 4 Nos.
  2. M-24x500 4 Nos.
  3. M-24x500 4 Nos.
  4. M-24x500 4 Nos.
  5. M-27x700 4 Nos.
  6. M-27x700 4 Nos.
  7. M-27x700 4 Nos.
  8. M-27x700 4 Nos.
  9. M-30x1000 4 Nos.
  10. M-30x1000 4 Nos.
  11. M-32x1000 4 Nos.
  12. M-27x700 4 Nos.
  13. M-27x700 4 Nos.
  14. M-30x1000 4 Nos.
  15. M-30x1000 4 Nos.
  16. M-32x1000 4 Nos.
